ANDREW

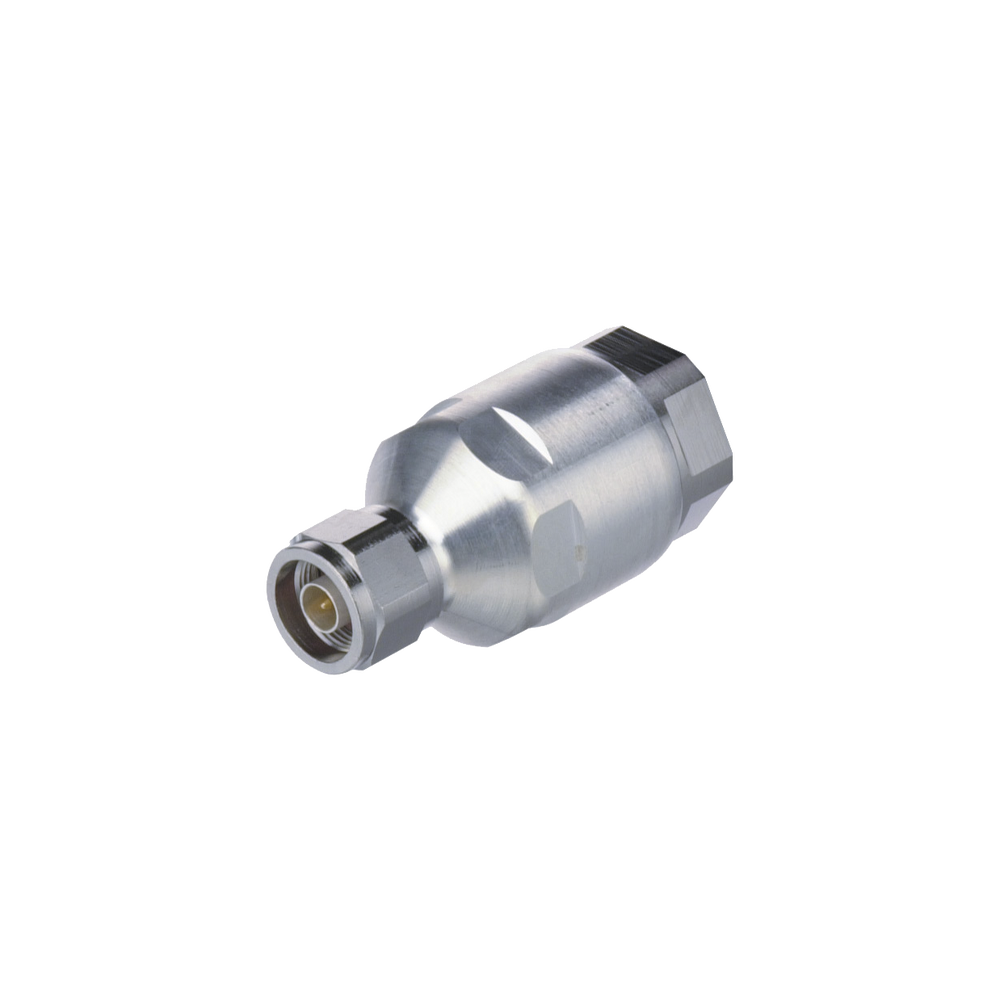

Type N Male OnePiece™ for 7/8 in LDF5-50A cable
Type N Male OnePiece™ for 7/8 in LDF5-50A cable
Precio habitual
$218.233 COP
Precio habitual
$238.693 COP
Precio de oferta
$218.233 COP
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Type N Male OnePiece™ for 7/8 in LDF5-50A cable
ELECTRICAL SPECIFICATIONS
AVERAGE POWER |
0.6 kW @ 900 MHz |
CABLE IMPEDANCE |
50 ohm |
DC TEST VOLTAGE |
2000 V |
CONNECTOR IMPEDANCE |
50 ohm |
PEAK POWER, MAXIMUM |
10.00 kW |
3RD ORDER IMD, TYPICAL |
-120 dBm @ 910 MHz |
INSERTION LOSS, TYPICAL |
0.05 dB |
SHIELDING EFFECTIVENESS |
-130 dB |
OPERATING FREQUENCY BAND |
0 – 5000 MHz |
3RD ORDER IMD TEST METHOD |
Two +43 dBm carriers |
INSULATION RESISTANCE, MINIMUM |
5000 MOhm |
INNER CONTACT RESISTANCE, MAXIMUM |
2.00 mOhm |
OUTER CONTACT RESISTANCE, MAXIMUM |
0.30 mOhm |
RF OPERATING VOLTAGE, MAXIMUM (VRMS) |
707.00 V |
Share
Agotado
MODELO: L5PNM-RPC
